Transformer Test Bench

A Transformer Test Bench is an advanced testing system designed to evaluate the performance, efficiency, and safety of power and distribution transformers. It ensures that transformers meet industry standards and operational requirements before installation or commissioning.

We are a leading manufacturer and supplier of Transformer Test Benches in India, offering reliable, accurate, and fully automated solutions suitable for transformer manufacturers, repair units, and power utilities.

Applications :-

  • Transformer manufacturing industries
  • Power generation plants
  • Electrical testing laboratories
  • Transformer repair and maintenance units
  • Substations and utility companies

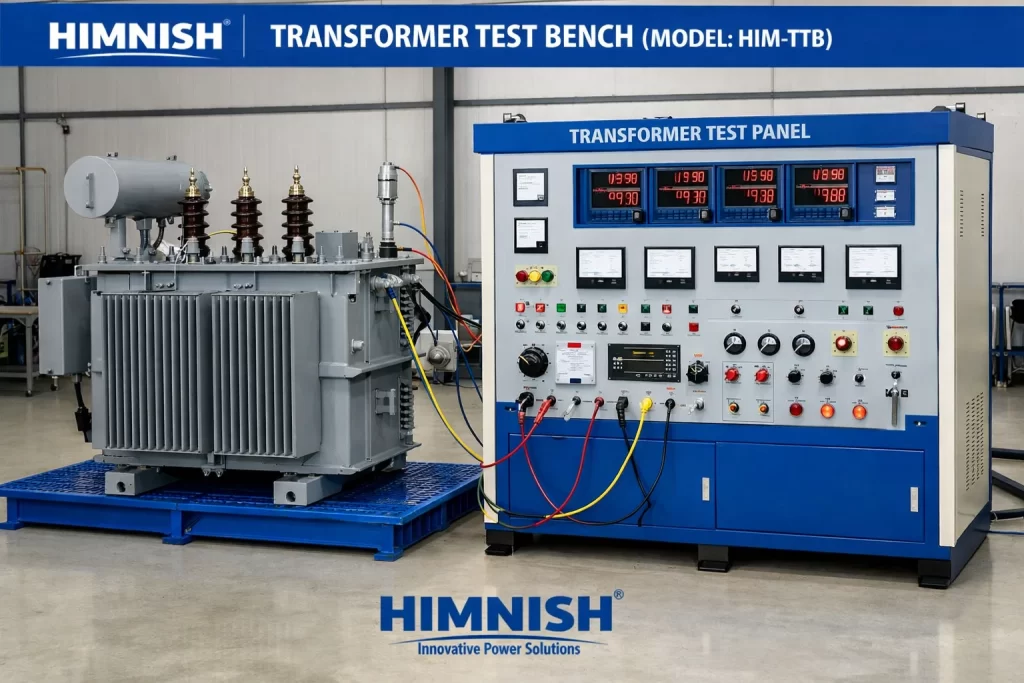

Model  – HIM-TTB

Key Features of Transformer Test Bench

  • High precision measurement for accurate test results
  • Fully automated and PLC/SCADA-based control system
  • Digital display and real-time data monitoring
  • User-friendly interface for easy operation
  • Custom-built solutions as per client requirements
  • Robust construction for long-term industrial use
  • Compliance with IS/IEC standards

Types of Tests Conducted

Our Transformer Test Bench is capable of performing multiple electrical and performance tests, including:

  • Open Circuit Test (No Load Test)
  • Short Circuit Test (Load Test)
  • Turns Ratio Test (TTR)
  • Insulation Resistance Test (IR Test)
  • High Voltage Test (HV Test)
  • Winding Resistance Test
  • Temperature Rise Test
  • Oil Dielectric Strength Test

Why Choose Our Transformer Test Bench?

  • Designed for high accuracy and repeatability
  • Advanced automation reduces human error
  • Customizable configurations for different transformer capacities
  • Energy-efficient and safe operation
  • After-sales support and installation assistance
  • Competitive pricing with superior quality

Technical Specifications

  • Capacity: Customizable (up to high MVA ratings)
  • Voltage Range: As per testing requirements
  • Frequency: 50 Hz / 60 Hz
  • Control System: PLC / PC-based automation
  • Data Logging: Available with report generation
  • Safety Features: Emergency stop, overload protection, earthing system
