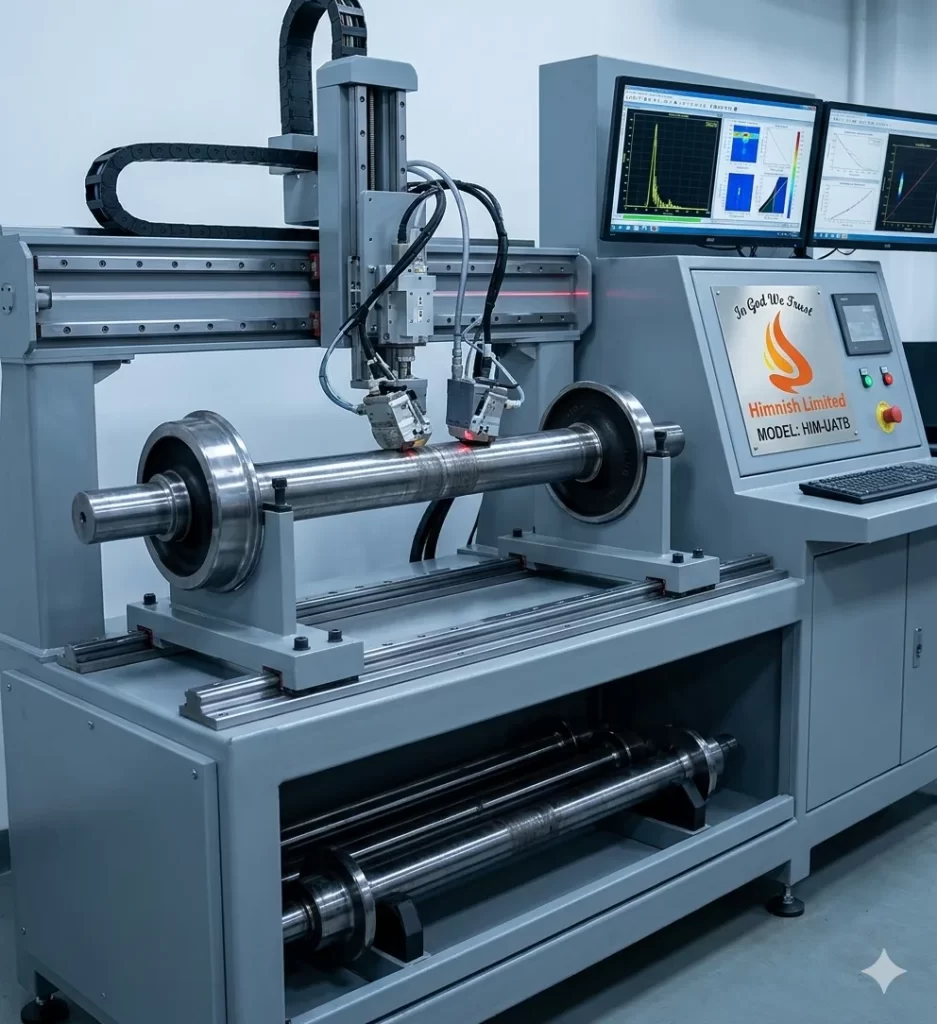

Ultrasonic Axle Test Bench

The Ultrasonic Axle Test Bench is an advanced Non-Destructive Testing (NDT) system designed for accurate detection of internal flaws, cracks, and defects in railway, automotive, and heavy vehicle axles. Utilizing high-frequency ultrasonic waves, this system ensures 100% reliable inspection without damaging the component, making it ideal for safety-critical applications.

Applications :-

  • Railway axle inspection and maintenance
  • Automotive axle quality testing
  • Heavy engineering industries
  • Defense and aerospace component inspection
  • Manufacturing plants for shaft and axle production

Model  – HIM-UATB

Key Features

  • High-precision ultrasonic flaw detection technology
  • Fully automated or semi-automated inspection process
  • Suitable for railway axles, truck axles, and industrial shafts
  • Real-time defect detection with digital display & reporting
  • Customizable scanning configurations for different axle sizes
  • Robust structure for continuous industrial operation
  • User-friendly interface with PLC/HMI control system
  • Data logging and report generation for quality compliance

Technical Specifications

  • Inspection Method: Ultrasonic Testing (UT)
  • Axle Length Capacity: Customizable (e.g., 1m – 4m)
  • Diameter Range: As per requirement
  • Probe Type: Single / Multi-probe system
  • Automation: Manual / Semi-Automatic / Fully Automatic
  • Control System: PLC-based with touchscreen HMI
  • Power Supply: Standard industrial supply
  • Compliance: Meets NDT standards and industrial safety norms

Advantages

  • Ensures zero defect quality assurance
  • Reduces inspection time and manpower cost
  • Enhances safety and reliability of critical components
  • Non-destructive testing ensures no material loss
  • High repeatability and accuracy

Why Choose Our Ultrasonic Axle Test Bench?

We manufacture high-performance ultrasonic axle testing systems designed for precision, durability, and efficiency. Our solutions are tailored to meet industry standards and can be customized as per client requirements, ensuring seamless integration into your production or maintenance line.
