Wheel Profile Measurement Bench

The Wheel Profile Measurement Bench is a high-precision inspection system designed to accurately measure and analyze the geometric profile of railway wheels. Engineered for reliability and efficiency, this system ensures compliance with industry standards, enhances safety, and extends the service life of wheelsets.

Applications :-

  • Railway workshops and maintenance depots
  • Metro rail and high-speed rail projects
  • Rolling stock manufacturers
  • Wheelset refurbishment units
  • Quality inspection departments

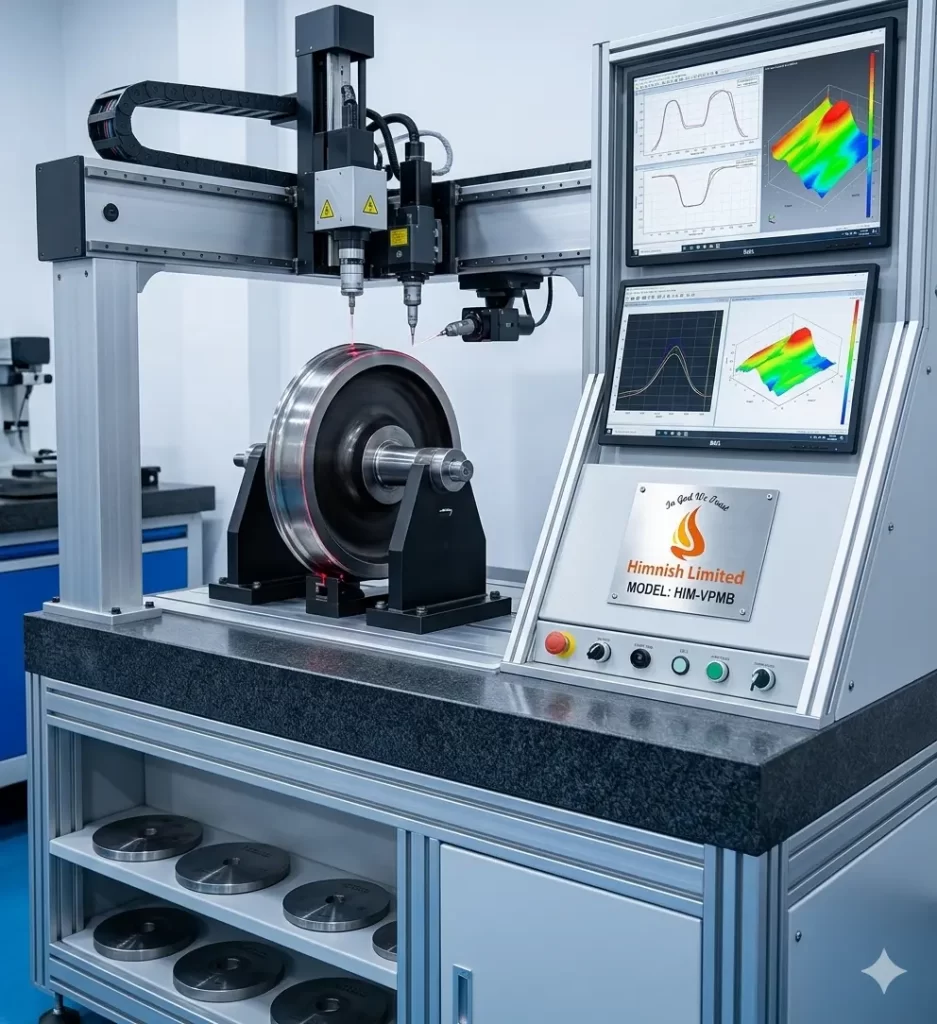

Model  – HIM-WPMB

Key Features

  • High Accuracy Measurement – Advanced sensors ensure precise measurement of flange thickness, height, tread wear, and hollowing.
  • Automated Inspection System – Reduces manual errors and improves productivity.
  • User-Friendly Interface – Easy-to-operate software with real-time data visualization.
  • Robust Construction – Heavy-duty design suitable for workshop and industrial environments.
  • Fast Data Processing – Quick measurement cycle to reduce downtime.
  • Data Storage & Reporting – Generate detailed reports for analysis and compliance tracking.

Technical Specifications

  • Measurement Type: Contact / Non-contact (Laser-based optional)
  • Accuracy: ±0.01 mm to ±0.05 mm
  • Wheel Diameter Range: Customizable as per requirement
  • Parameters Measured:
    • Flange Height
    • Flange Thickness
    • Wheel Tread Wear
    • Back-to-Back Distance
    • Hollow Wear

  • Benefits

    • Ensures railway safety and compliance
    • Reduces maintenance costs and downtime
    • Improves wheel lifespan and performance
    • Enables predictive maintenance planning
    • Enhances inspection accuracy and efficiency

    Why Choose Us

    • Custom-built solutions as per client requirements
    • Advanced engineering and quality assurance
    • Competitive pricing with nationwide support
    • Trusted by leading railway and industrial clients
